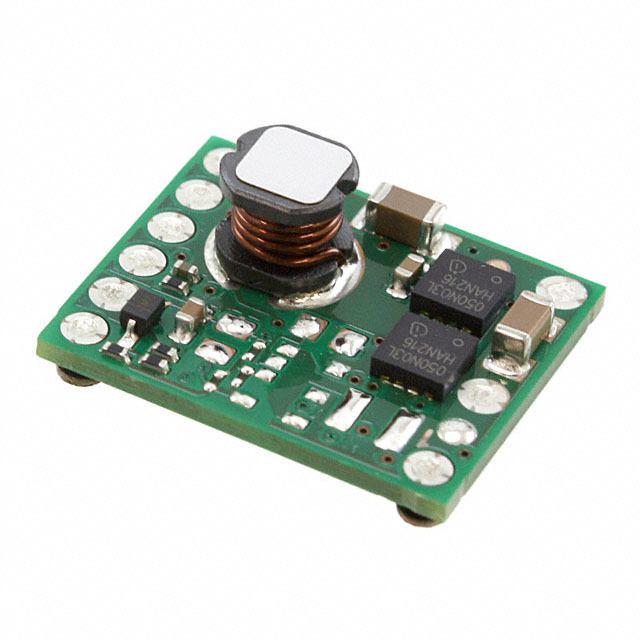

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Provide the ability to switch between voltages by using this step down PTH08T230WAS DC to DC converter and switching regulator module. It has a voltage of 0.69 to 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component comes in tray packaging, useful for fast picking and placing of your parts.
PTH08T230WAS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | SMD-10 |
| Supply Voltage (DC) | 5.00 V |
| Power Rating | 33 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 4.50V ~ 14.0V |
| Output Voltage | 0.69V ~ 5.5V |
| Output Current | 6 A |
| Number of Regulated Outputs | 1 Output |
| Topology | Buck |
| Input Voltage (Max) | 14 V |
| Input Voltage (Min) | 4.5 V |
| Output Current (Max) | 6 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 14V |
| Show | |
| Size-Length | 18.9 mm |
| Size-Width | 15.8 mm |
| Size-Height | 7.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
