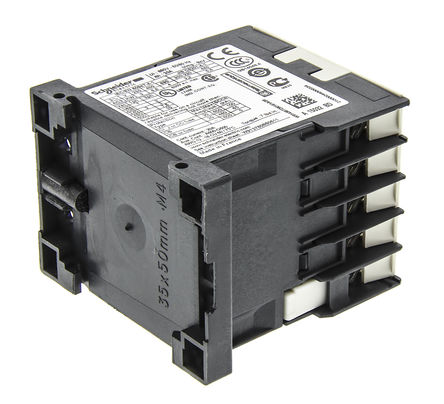

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LP1K1210BD is a Tesys K Contactor, it forms a complete range of reversing or non-reversing contactors and offering the best performance/compactness ratio and seamless integration in all your applications. The low-consumption contactor can use compatible with programmable controller.
TeSys k
3NO Contact Configuration
Compact Performance
Use Compatible with Programmable Controller Outputs

Show

LP1K1210BD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Operating Voltage	690 V
Current Rating	12 A
Power Rating	5.5 kW
Contacts Type	3PST-NO
Number of Bits	3 Bit
Contact Current Rating	20 A
Coil Voltage	24 VDC
Coil Voltage (DC)	24 V
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	690 VAC
	Show
Size-Length	58 mm
Size-Width	45 mm
Size-Height	58 mm
Weight	220 g
Operating Temperature	-25℃ ~ 50℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
