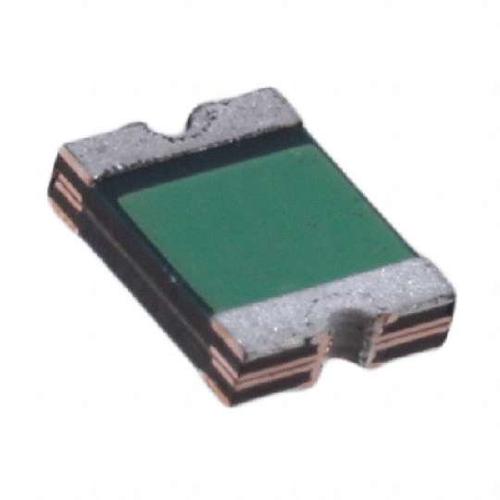

Image is for your reference only,please check specifications for details
- 0ZCH0050FF2G - BEL Fuse
-
Manufacturer:BEL Fuse
-
ManyChip's Part#:MC24257267
-
Category:Fuse
-
Package:1210
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 0.5A(hold) 1A(trip) 16VDC 100A 0.6W 0.1s 0.25Ω SMD Solder Pad 1210 T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- With this 0ZCH0050FF2G PTC resettable fuse from Bel Fuse you will no longer have to replace a fuse when it burns out. This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43(Max) mm long, 0.75(Max) mm tall and 2.8(Max) mm deep.
0ZCH0050FF2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Time to Trip | 100 ms |
| Power Dissipation | 0.6 W |
| Resistance | 0.9 Ω |
| Holding Current | 0.5 A |
| Trip Current | 1 A |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 500 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 VDC |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
