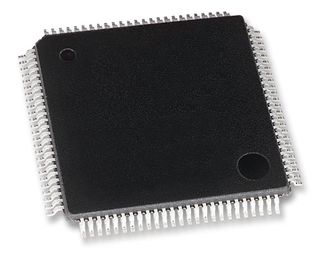

Image is for your reference only,please check specifications for details

TMS320F28067PZT - TI
Manufacturer:
TI
ManyChip's Part#:
MC20056703
Category:
Microcontroller, MCU IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMS320F28067PZT 32Bit Microcontroller, Piccolo, C2000, 90MHz, 256KB, 100KB, 100Pins, LQFP
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.82

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The F2806x Piccolo family of microcontrollers (MCUs) provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration.
An internal voltage regulator allows for single-rail operation. Enhancements have been made to the High-Resolution Pulse Width Modulator (HRPWM) module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the ePWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.

Show

TMS320F28067PZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	90 MHz
Supply Voltage (DC)	1.71V (min)
Clock Speed	90.0 MHz
RAM Memory Size	100 KB
Number of Bits	32 Bit
FLASH Memory Size	262144 B
Number of UARTs	2 UART
Number of ADCs	1 ADC
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	3 DAC
Supply Voltage (Max)	1.995 V
Supply Voltage (Min)	1.71 V
	Show
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
