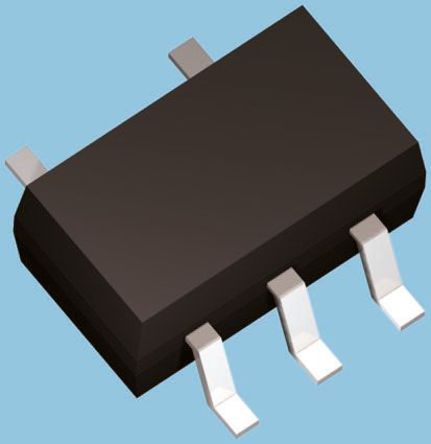

NL17SZ07DFT2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC127004
Category:
Logic Controller, Logic IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
NL17SZ07DFT2G, 0-channel Open Drain Buffer, 1.65 to 5.5V, 5Pin SC-88A
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NL17SZ07DFT2G is a high performance single Non-inverting Buffer with open drain outputs operating from a 1.65 to 5.5V supply. The output stage is open drain with over voltage tolerance. This allows the NL17SZ07 to be used to interface 5V circuits to circuits of any voltage between 0 and 7V.
LVCMOS Compatible
Near 0 static supply current substantially reduces system power requirements
Extremely high speed - Propagation delay (tpd) 2.5ns typical at VCC = 5V
Designed for 1.65 to 5.5V VCC operation, CMOS compatible
Over voltage tolerant inputs VIN may be between 0 and 7V for VCC between 0.5 and 5.5V
TTL Compatible - Interface capability with 5V TTL Logic with VCC = 2.7 to 3.6V
24mA Output sink capability, pull-up may be between 0 and 7V
Chip complexity - FET = 20

Show

NL17SZ07DFT2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	1.65V (min)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Positions	5 Position
Number of Bits	1 Bit
Power Dissipation	186 mW
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-50 ℃
Power Dissipation (Max)	186 mW
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
