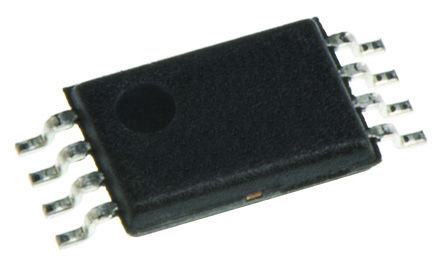

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS2113PW is a Power Multiplexer that enables seamless transition between two power supplies (such as a battery and a wall adapter), delivering up to 1A. The device includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking and reverse-conduction blocking. Controlled output voltage transition times, limits inrush current and minimizes output voltage hold-up capacitance.
- Two-Input, one-output power multiplexer with Low rDS(on) switches 84mR typical
- Reverse and cross-conduction blocking
- 0.5µA (typical) Low standby current
- 55µA (typical) Low operating current
- Adjustable current limit
- CMOS- and TTL-compatible control inputs
- Auto-switching operating mode
- Thermal shutdown
TPS2113PW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.50 V |
| Output Voltage | ≤6.00 V |
| Output Current | 1.25 A |
| Supply Current | 55 µA |
| Number of Positions | 8 Position |
| Power Dissipation | 386.84 mW |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1.5 V |
| Output Current (Max) | 1.25 A |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 386.84 mW |
| Supply Voltage | 2.8V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.8 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
