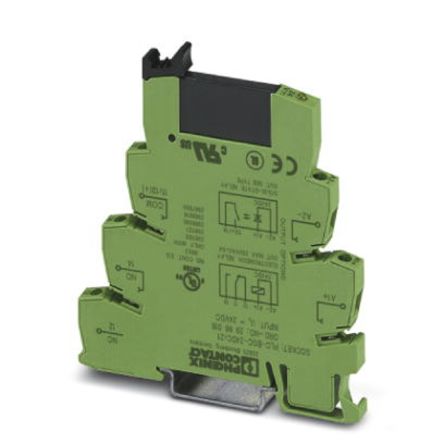

- 2966634 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC49418996
-
Category:Solid State Relay
-
Package:Module
-
Datasheet:Datasheet 3D Model
-
Description:Actuator Base Style Screw Connection 24VDC Input 3-32VDC 2A Output Power Optical Coupler Green Plastic Housing 6.2mm ...
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PLC-RELAY Series: Terminal Block with Plug-in Relay or SSR
- The PLC-RELAY is the only pluggable quarter inch terminal block, which accepts either a solid-state relay or an electro-mechanical relay. Using only one part number, you are able to order both the base terminal block and the pluggable relay as a single unit. The PLC-RELAY is also available with switching capacities up to 10 A at 250 VAC.
- The PLC-RELAY now also available in both sensor and actuator versions. In these versions you can connect sensors and actuators to the base terminal blocks to eliminate costly wiring and additional output terminal blocks. The preceding variations are only a few of the possibilities that are available. There are now over 100 variations available in different configurations and ratings.
- Electromechanical & Solid-State Relay
- * Universal — Input or Output Application
- * Input Specialist — Designed Specifically for 3 Wire Input Applications
- * Output Specialist — Designed Specifically for 2 Wire Output Applications
- * High Current / Inrush
- Electromechanical Only
- * 125 VDC Electro-Mechanical PLC Relays 3
- * 5 VDC PLC Relay Base Terminal Block and Plug in Relays
2966634 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | PCB |
| Number of Pins | 5 Pin |
| Case/Package | Module |
| Current Rating | 3000 mA |
| Contacts Type | SPDT |
| Load Current | 3 A |
| Input Current | 8.5 mA |
| Power Dissipation | 200 mW |
| Power Consumption | 140 W |
| Isolation Voltage | 2.5 kV |
| Coil Voltage | 24.0 V |
| Input Voltage (Max) | 28.8 V |
| Output Voltage (Max) | 33 V |
| Input Current (Min) | 8.5 mA |
| Maximum Forward Voltage (Max) | 24 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 200 mW |
| Voltage Rating | 33 VDC |
| Input Voltage | 24 VDC |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 6.2 mm |
| Size-Height | 94.0 mm |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
