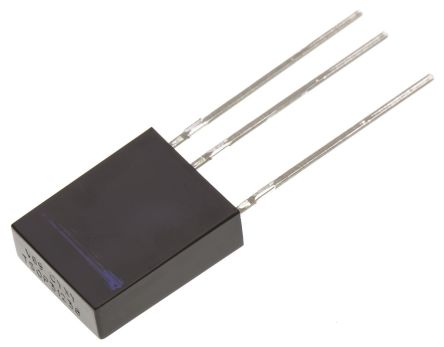

Image is for your reference only,please check specifications for details
- TSOP31238 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC1424596
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:38kHz 45m 2.5-5.5V Through Hole IR Receiver Module for Remote Control System
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSOP31238 is an IR Receiver Module for remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding.
- Very Low Supply Current
- Photo Detector and Preamplifier in One Package
- Internal Filter for PCM Frequency
- Improved Shielding Against EMI
- Improved Immunity against Ambient Light
- Insensitive to Supply Voltage Ripple and Noise
TSOP31238 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | Through Hole |
| Frequency | 38 kHz |
| Supply Voltage (DC) | 1.70 V |
| Operating Voltage | 1.70 V |
| Output Current | 5 mA |
| Supply Current | 450 µA |
| Number of Positions | 3 Position |
| Wavelength | 950 nm |
| Viewing Angle | 45° |
| Peak Wavelength | 950 nm |
| Power Dissipation | 10 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 2.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 5.8 mm |
| Size-Height | 12.5 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
