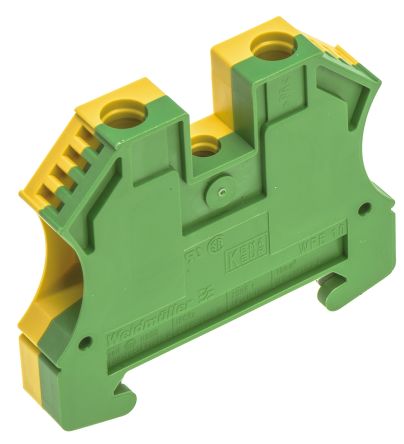

Image is for your reference only,please check specifications for details

1010300000 - Weidmuller
Manufacturer:
Weidmuller
ManyChip's Part#:
MC25320271
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
WEIDMULLER 1010300000 DIN Rail Mount Terminal Block, 2Positions, 16AWG, 6AWG, 10mm², Screw
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1010300000 is a Modular PE Terminal Block with screw connection and 10mm² wire cross section area. M4 clamping screw and 12mm stripping length. Green, yellow color. Screw mounting with TS 35 mount rail. The WPE 10 terminal block accepts 16AWG minimum to 6AWG maximum wire size. When it comes to functional perfection down to the finest detail, the screw connection terminals in the W-series set the standard a long time ago. The combination of benefits is unequalled and puts the W-series in a leading position on the market. The W-Series offers solutions for all standard electrical functions. It brings considerable time savings compared to all other screw terminals on the market. Thanks to the patented design of Weidmüller"s W-series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.
Wemid insulator
UL94V-0 Flammability rating

Show

1010300000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Number of Contacts	2 Contact
Wire Gauge	6AWG ~ 16AWG
Number of Rows	2 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-50 ℃
Voltage Rating (Max)	800 V
Voltage Rating	1 kV
Operating Voltage (Max)	800 V
	Show
Size-Length	60 mm
Size-Width	9.9 mm
Size-Height	47 mm
Housing Color	Green, Yellow
Color	Green, Yellow
Operating Temperature	-50℃ ~ 120℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
