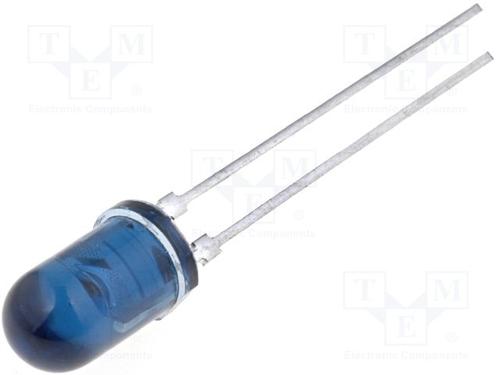

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSUS5402 is a 950nm Infrared Emitting Diode in GaAs technology moulded in a blue-grey tinted plastic package. It is suitable for use in infrared remote control and free air transmission systems with low forward voltage and small package requirements, emitter in transmissive sensors, emitter in reflective sensors.
- High reliability
- ϕ = ±22° Angle of half intensity
- Low forward voltage
- Suitable for high pulse current operation
- Good spectral matching with Si photodetectors
TSUS5402 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-1 |
| Operating Voltage | 1.3V ~ 1.7V |
| Forward Voltage | 2.7 V |
| Wavelength | 950 nm |
| Viewing Angle | 44° |
| Peak Wavelength | 950 nm |
| Power Dissipation | 210 W |
| Rise Time | 800 ns |
| Test Current | 100 mA |
| Forward Current | 150 mA |
| Maximum Forward Voltage (Max) | 1.3 V |
| Forward Current (Max) | 150 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 210 mW |
| Show | |
| Size-Height | 8.7 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
