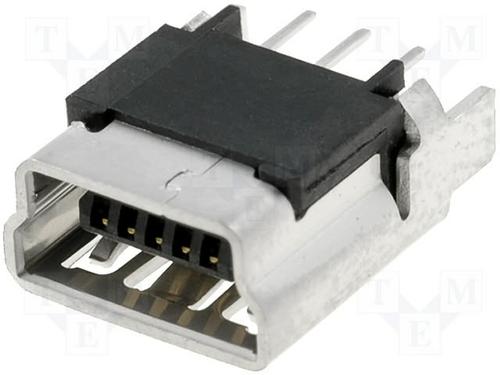

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Make your product"s components work properly with the usb type b 5000751517 audio and video connector from Molex. This RCP connector"s 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 VDC|30VAC. It has a receptacle type gender. It has a straight body orientation. This connector has a single port. Its pitch is 1.6 mm. This device has a maximum current rating of 1 A/contact. 5000751517 is housed in polyamide. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 7.7 mm long, 7.7 mm tall and 4.7 mm deep. This part has an operating temperature range of -40 °C to 85 °C. Its 5 terminals use the solder termination method.
5000751517 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | - |
| Number of Contacts | 5 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 1.00 A |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 01 Row |
| Glow Wire Compliant | Non-Compliant |
| Halogen Free Status | Not Low Halogen |
| Orientation | Vertical |
| Number of Circuits | 5 Circuit |
| Number of Positions | 5 Position |
| Contact Resistance | 50.0 mΩ |
| Data Rate | 480 Mbps |
| Current Rating (Max) | 1A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 30VAC, 30VDC |
| Show | |
| Size-Length | 7.7 mm |
| Size-Width | 4.7 mm |
| Size-Height | 7.7 mm |
| Mated Height | 950 µm |
| Color | Gray, Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
