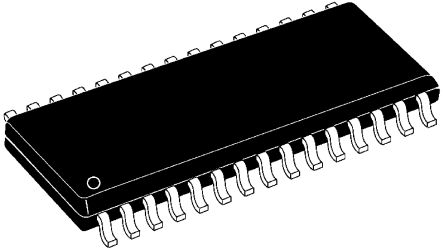

TPS51020DBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC26658965
Category:
Voltage Regulator
Package:
TSSOP-30
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) Dual, DDR selectable, Synchronous buck controller DC DC Cntrlr Dual-OUT Sync Step Down 4.5V to 28V Input 30Pin TSSOP Tube
Stock Locations:
Availability:
9,713 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS51020DBT is a multi-function dual-synchronous Step-down Controller for notebook system power. The device is specifically designed for high performance, high efficiency applications where the loss associated with a current sense resistor is unacceptable. The device utilizes feed forward voltage mode control to attain high efficiency without sacrificing line response. Efficiency at light load conditions can be maintained high as well by incorporating autoskip operation. A selectable, suspend to RAM (STR) supported, DDR option provides one chip solution for all switching applications from 5V/3.3V supply to a complete DDR termination solution.
Selectable dual and DDR modes
Selectable fixed frequency voltage mode
Advanced power good logic monitors both channels
Selectable autoskip mode
Integrated boot strap diodes
180° Phase shift between channels
5V, 60mA Integrated regulator
Input feed forward control
1% Internal 0.85V reference
RDS(on) overcurrent detection (4200 ppm/°C)
Integrated OVP, UVP and power good timers
Green product and no Sb/Br

Show

TPS51020DBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	30 Pin
Case/Package	TSSOP-30
Frequency	450 kHz
Supply Voltage (DC)	28.0V (max)
Number of Outputs	2 Output
Input Voltage (DC)	28.0 V
Output Voltage	0.9V ~ 24V
Output Current	15 A
Number of Positions	30 Position
Power Dissipation	874 mW
Quiescent Current	1.40 mA
Number of Regulated Outputs	2 Output
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	12 V
Output Current (Max)	20 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	874 mW
Supply Voltage	4.5V ~ 28V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 28V
	Show
Size-Length	7.8 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
