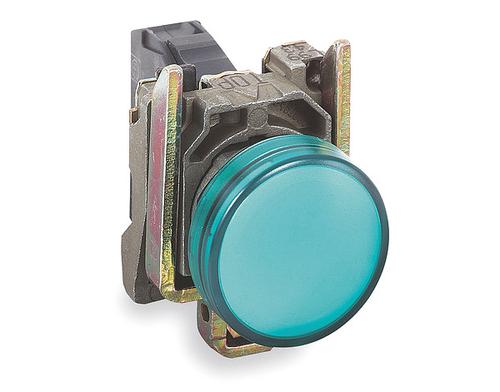

Image is for your reference only,please check specifications for details

XB4BVG4 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC154940333
Category:
Pushbutton Switch, Switch Push button
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC XB4BVG4 LED Panel Mount Indicator, Red, 120VAC, 22mm, IP66, NEMA 4X, NEMA 13 New
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The XB4BVG4 from Schneider Electric is a Harmony XB4 red colour complete pilot light plain lens with integral protected LED. It has round shape signalling unit head. The device also has IP66 degree of protection conforming to IEC 60529, IK05 degree of protection conforming to IEC 50102, NEMA 4X and NEMA 13 degree of protection. It complies with CSA C22-2 number 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520 and UL 508 standards. It offers indicator light or contact functions and is divided into pilot lights or control units designed to ensure safety of persons, machines or work in progress. The XB4 pilot lights consist of metal products for base lamps or LEDs with or without pulsed or rotary actuators.
Rated supply voltage from 110VAC to 120VAC, 50Hz/60Hz
Screw clamp terminal connections
Mounting diameter of 22mm
Chromium plated metal bezel material and zamak fixing collar material
Dimension is 47mm x 30mm x 54mm (H x W x D)
Rated insulation voltage of 250V conforming to EN 60947-1
Rated impulse withstand voltage of 4KV conforming to EN 60947-1
Current consumption of 14mA
Service life of 100000h at rated voltage and 25°C
Ambient air temperature for operation from -25°C to 70°C

Show

XB4BVG4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Operating Voltage	120 VAC
Forward Current	14 mA
	Show
Packaging	Each
RoHS	RoHS Compliant
REACH SVHC Compliance Edition	2015/12/17
