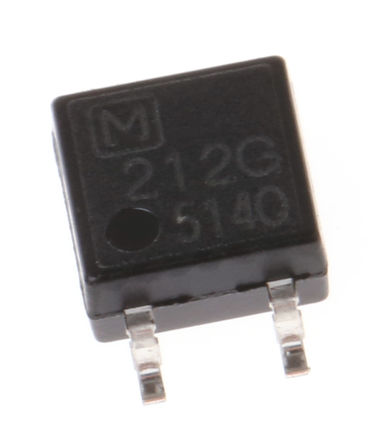

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AQY212GS is a SMD miniature SOP4-pin type MOSFET Relay with broad line-up of high capacity.
- AC/DC dual use
- -40 to 85°C Operating temperature range
AQY212GS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Current Rating | 1 A |
| Capacitance | 1 pF |
| Output Voltage | 0V ~ 60V |
| Output Current | 1 A |
| Contacts Type | SPST-NO |
| Load Current | 1 A |
| Input Current | 50 mA |
| Power Dissipation | 450 mW |
| Rise Time | 1.30 ms |
| Isolation Voltage | 1.5 kV |
| Forward Current | 1.1 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 1 A |
| Input Current (Min) | 50 mA |
| Load Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 450 mW |
| Voltage Rating | 60 VAC |
| Input Voltage | 1.5 V |
| Show | |
| Size-Length | 4.4 mm |
| Size-Width | 4.3 mm |
| Size-Height | 2.1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
