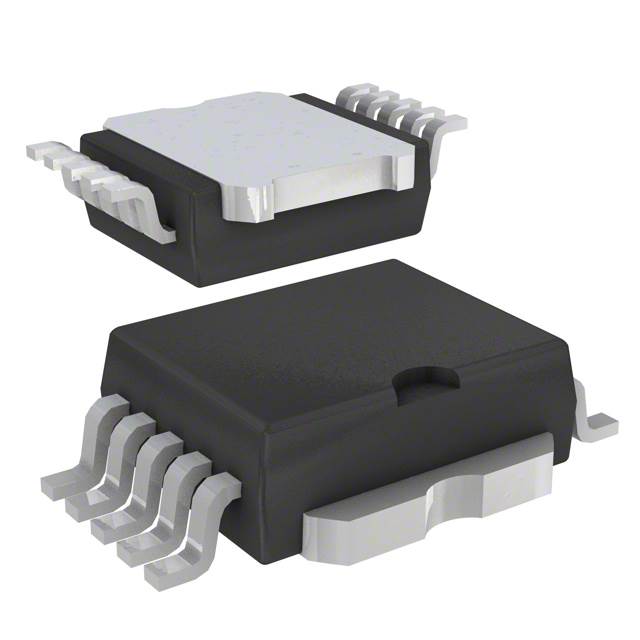

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The VN330SP(8932) is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground.
- ■ OUTPUT CURRENT: 1 A PER CHANNEL
- ■ DIGITAL INPUTS CLAMPED AT 32V MINIMUM VOLTAGE
- ■ SHORTED LOAD AND OVERTEMPERATURE PROTECTIONS
- ■ BUILT-IN CURRENT LIMITER
- ■ UNDER VOLTAGE SHUT DOWN
- ■ OPEN DRAIN DIAGNOSTIC OUTPUT
- ■ FAST DEMAGNETIZATION OF INDUCTIVE LOADS
VN330SP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | PowerSO-10 |
| Supply Voltage (DC) | 36.0V (max) |
| Number of Outputs | 4 Output |
| Output Current | 1 A |
| Number of Channels | 4 Channel |
| Drain to Source Resistance (on) (Rds) | 400 mΩ |
| Output Current (Max) | 700 mA |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
