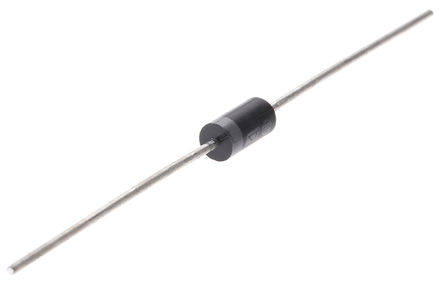

Image is for your reference only,please check specifications for details

P6KE30A - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC486655
Category:
TVS Diode
Package:
DO-15
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS P6KE30A TVS Diode, P6KE3 Series, Unidirectional, 25.6V, 41.4V, DO-15, 2Pins
Stock Locations:
Availability:
780 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Transil P6KE series Transient Voltage Surge Suppressor Diode provides high overvoltage protection by clamping action. It has instantaneous response to transient over-voltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC"s.
600W (10/1000µs ) Peak pulse power
6.8 to 440V Stand-off voltage range
Unidirectional and bidirectional types
Low clamping factor
Fast response time

Show

P6KE30A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-15
Voltage Rating (DC)	30.0 V
Power Rating	600 W
Breakdown Voltage	30 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	53.5 V
Test Current	1 mA
Max Breakdown Voltage	31.5 V
Peak Pulse Power	600 W
Min Breakdown Voltage	28.5 V
Reverse Breakdown Voltage	28.5 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175 ℃
	Show
Size-Length	6.75 mm
Size-Width	3.53 mm
Size-Height	3.53 mm
Size-Diameter	3.53 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
