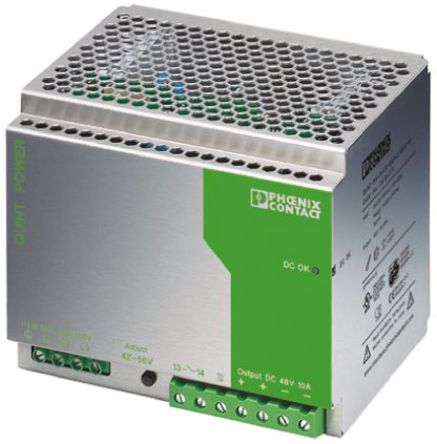

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 3x400 to 500 VAC nominal input voltage
- * DC to DC converter, AC to DC converter
- * 160 mmWx160mmHx130mmD
- * LED green operating voltage display
- * >90% efficiency
- * IP20 degree of protection
- * -25 to 70 °C operating temperature
- * Pluggable screw connection
- * CB, UL, cULus Recognized, CSA Certified
- * RoHS Compliant
- * Wide Input Range
- * Greater Than 500,000 Hours MTBF
- * Five-Year USA Warranty
2938219 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 11 Pin |
| Frequency | 45Hz ~ 65Hz |
| Current Rating | 10 A |
| Power Rating | 480 W |
| Number of Outputs | 1 Output |
| Output Voltage | 48 V |
| Output Current | 10 A |
| Output Power | 480 W |
| Isolation Voltage | 3 kV |
| Input Voltage (Max) | 575 VAC |
| Input Voltage (Min) | 320 VAC |
| Input Voltage (DC Max) | 800 V |
| Input Voltage (DC Min) | 450 V |
| Input Voltage (AC Max) | 575 V |
| Input Voltage (AC Min) | 320 V |
| Output Voltage (Max) | 56 VDC |
| Output Voltage (Min) | 30 VDC |
| Output Current (Max) | 10 A |
| Input Power (Max) | 480 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 400VAC ~ 500VAC |
| Show | |
| Size-Length | 125 mm |
| Size-Width | 160 mm |
| Size-Height | 130 mm |
| Weight | 2.3 kg |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407018 |
| ECCN Code | EAR99 |
