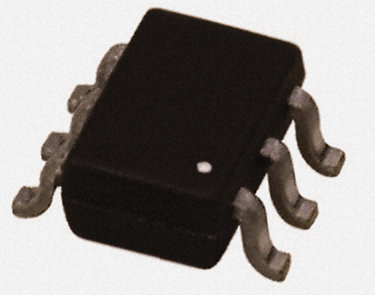

Image is for your reference only,please check specifications for details

FDC6312P - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC48061692
Category:
MOSFET, MOSFET Transistor
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDC6312P Dual MOSFET, Dual P Channel, 2.3A, -20V, 115mohm, -4.5V, -900mV
Stock Locations:
Availability:
9,232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDC6312P is a dual P-channel MOSFET produced using advanced PowerTrench® process. It has been especially tailored to minimize ON-state resistance and yet maintain low gate charge for superior switching performance.
High performance Trench technology for extremely low RDS (ON)
Small footprint
Low profile
±8V Gate to source voltage
-2.3A Continuous drain/output current
7A Pulsed drain/output current

Show

FDC6312P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Voltage Rating (DC)	-20.0 V
Current Rating	-2.30 A
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	115 mΩ
Polarity	P-Channel, Dual P-Channel
Power Dissipation	960 mW
Input Capacitance	467 pF
Gate Charge	4.40 nC
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20.0 V
Breakdown Voltage (Gate to Source)	±8.00 V
Continuous Drain Current (Ids)	2.30 A
Rise Time	13 ns
Input Capacitance (Ciss)	467pF @10V(Vds)
Input Power (Max)	700 mW
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	960 mW
	Show
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
