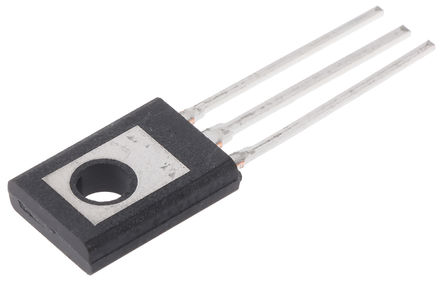

Image is for your reference only,please check specifications for details

C106M1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC63098004
Category:
SCR Diode, SCR
Package:
TO-126-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR C106M1G Thyristor, 600V, 0.2mA, 2.55A, 4A, TO-225AA, 3Pins
Stock Locations:
Availability:
9,889 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The C106M1G is a 4A RMS PNPN sensitive gate Silicon Controlled Rectifier (SCR) designed for high volume consumer applications where reliability of operation is important.
Reverse blocking thyristor
Glassivated surface for reliability and uniformity
Power rated
Practical level triggering and holding characteristics
Flat, rugged, thermopad construction for low thermal resistance, high heat dissipation & durability

Show

C106M1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Voltage Rating (DC)	600 V
Current Rating	4.00 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Holding Current	3 mA
Holding Current (Max)	3 mA
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 110℃
	Show
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Operating Temperature	-40℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
