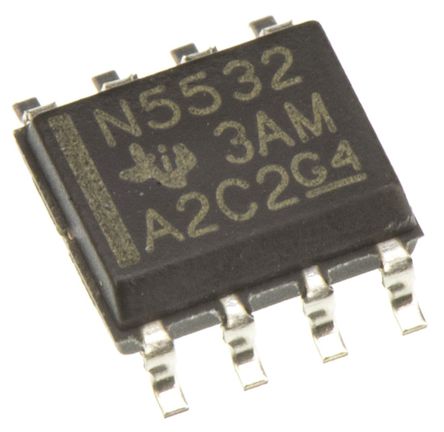

Image is for your reference only,please check specifications for details
- NE5532D - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC783729
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Dual, 2 Amplifier, 10MHz, 9V/µs, ± 5V to ± 15V, SOIC, 8Pins
-
Stock Locations:
-
Availability:795 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.56
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
NE5532D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 18.0 V |
| Operating Voltage | 5V ~ 15V |
| Output Current | 38 mA |
| Supply Current | 8 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 0.00 V/K |
| Bandwidth | 10 MHz |
| Slew Rate | 9.00 V/μs |
| Gain Bandwidth Product | 10 MHz |
| Input Offset Voltage | 500 µV |
| Input Bias Current | 200 nA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 10 MHz |
| Minimum CMRR Range | 70 dB |
| Supply Voltage | 10V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
