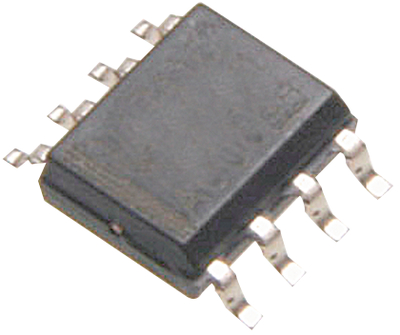

Image is for your reference only,please check specifications for details
- AD822ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC127196
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD822ARZ Operational Amplifier, Dual, 2 Amplifier, 1.9MHz, 3V/µs, 5V to 30V, ± 2.5V to ± 15V, SOIC, 8Pins
-
Stock Locations:
-
Availability:84 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.94
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AD822ARZ is a rail to rail, FET input dual op amp (Operational Amplifier) in 8 pin NSOIC package. This dual precision, low power op amp can operate from single supply of 5V to 30V or dual supplies of ±2.5V to ±15V. It has true single supply capability with an input voltage range extending below negative rail allowing the AD822 to accommodate input signals below ground in single supply mode. Output voltage swing extends to within 10mV of each rail providing the maximum output dynamic range.
- Rail to rail output swings
- Capacitive load drive of 350pF at G = +1
- Minimum output current of 15mA
- 800µA maximum quiescent current per amplifier
- Unity gain bandwidth of 1.9MHz at VS = ±5 V
- Slew rate of 3V/µs
- 800µV maximum input offset voltage
- Low noise of 13nV/√Hz at 10KHz
- 25pA maximum input bias current
- Operating temperature range from -40°C to 85°C
- ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
AD822ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 30.0 V |
| Supply Current | 1.4 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 66 dB |
| Input Capacitance | 2.80 pF |
| Bandwidth | 1.9 MHz |
| Slew Rate | 3.00 V/μs |
| Gain Bandwidth Product | 1.8 MHz |
| Input Impedance | 10.0 TΩ |
| Input Offset Voltage | 400 µV |
| Input Bias Current | 2 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 1.9 MHz |
| Gain Bandwidth | 1.8 MHz |
| Minimum CMRR Range | 66 dB |
| Supply Voltage | 5V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
