Description

Product Details
The AD8033 _FastFET_ amplifier is a voltage feedback amplifier with FET inputs, offering ease of use and excellent performance. The AD8033 _FastFET_ op amp in ADI"s proprietary XFCB process offers significant performance improvements over other low cost FET amps, such as low noise (11 nV/√Hz and 0.6 fA/√Hz) and high speed (80 MHz bandwidth and 80 V/µs slew rate).
With a wide supply voltage range from 5 V to 24 V and fully operational on a single supply, the AD8033 amplifier will work in more applications than similarly priced FET input amps. In addition, the AD8033 has rail-to-rail outputs for added versatility.

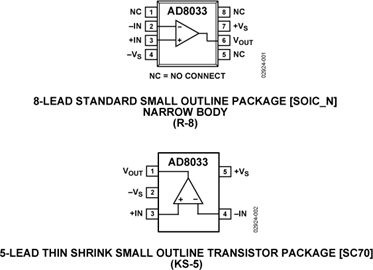

AD8033 (Single amp) SOIC-8 and SC70
AD8034 (Dual amp) SOIC-8 and SOT23-8
### Features and Benefits
FET Input Amplifier
1 pA Typical Input Bias Current
Very Low Cost
High Speed
80 MHz, -3 dB Bandwidth (G = +1)
80 V/µs Slew Rate (G = +2)
Low Noise
11 nV/vHz (f = 100 kHz)
0.6 fA/vHz (f = 100 kHz)
Wide Supply Voltage Range
5 V to 24 V
Low Offset Voltage, 1 mV Typical
Single-Supply and Rail-to-Rail
Output
High Common-Mode Rejection
Ratio -100 dB
Low Power
3.3 mA/Amplifier Typical Supply Current
No Phase Reversal
Small Packaging
SOIC-8, SC70

Show

AD8033 Specifications
