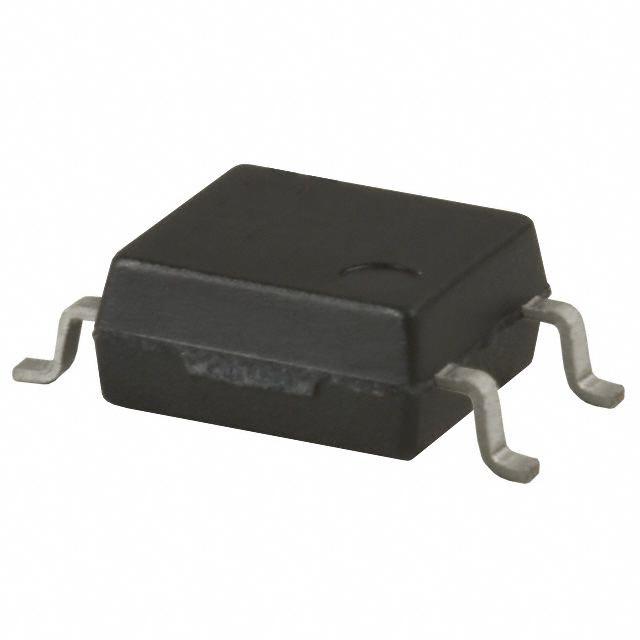

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Built-In Input Resistor for Less Man-Hours
- * The Voltage-Sensitive Type Eliminates the Need to Mount an External Input Resistor, Which Cuts Man-Hours for Mounting and Simplifies Board Designing
- * Space Saving on PC Board
- * The Small Package Size Including a Built-In Resistor Helps Space Savings When Designing Miniature Devices
AQY212FG2S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Current Rating | 1.25 A |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 60V |
| Output Current | 3000 mA |
| Contacts Type | SPST-NO |
| Load Current | 1.25 A |
| Input Current | 8.5 mA |
| Isolation Voltage | 500 V |
| Forward Current | 8.5 mA |
| Input Voltage (Max) | 4 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 3 A |
| Input Current (Min) | 8.5 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 60 VAC |
| Input Voltage | 1.4 VDC |
| Show | |
| Size-Height | 2 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
