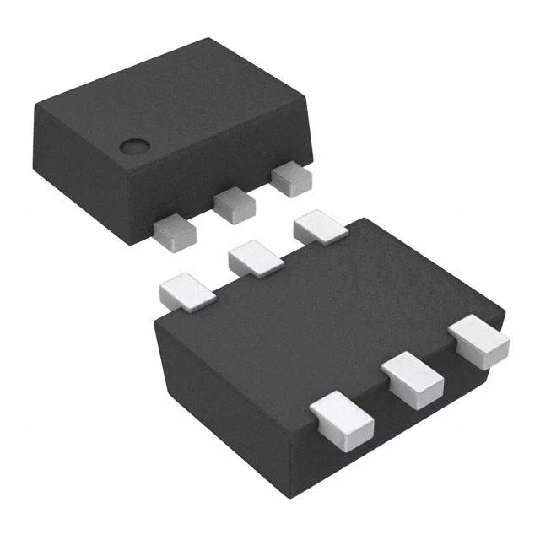

Image is for your reference only,please check specifications for details

TMP112AIDRLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC843927
Category:
Temperature Sensor
Package:
SOT-553-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMP112AIDRLR Temperature Sensor IC, Open Drain, ± 0.5℃, -40℃, 125℃, SOT, 6Pins
Stock Locations:
Availability:
2,221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TMP112 device is a digital temperature sensor ideal for NTC/PTC thermistor replacement where high accuracy is required. The device offers an accuracy of ±0.5°C without requiring calibration or external component signal conditioning. IC temperature sensors are highly linear and do not require complex calculations or lookup tables to derive the temperature. The calibrating for improved accuracy feature allows users to calibrate for an accuracy as good as ±0.17°C (see the Calibrating for Improved Accuracy section). The on-chip 12-bit ADC offers
resolutions down to 0.0625°C.
Features
• SOT563 Package (1.6 mm × 1.6 mm) is 68% smaller footprint than SOT23
• Accuracy Without Calibration:
– 0.5°C (max) from 0°C to +65°C
– 1.0°C (max) from –40°C to +125°C
• Low Quiescent Current:
– 10μA Active (max), 1μA Shutdown (max)
• Supply Range: 1.4V to 3.6V
• Resolution: 12 Bits
• Digital Output: SMBus™, Two-Wire and I2C Interface Compatibility

Show

TMP112AIDRLR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-553-6
Supply Voltage (DC)	1.40V (min)
Supply Current	0.01 mA
Number of Positions	6 Position
Quiescent Current	7.00 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	-0.1 ℃
Supply Voltage	1.4V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.4 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
