AD8642ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC513122
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:

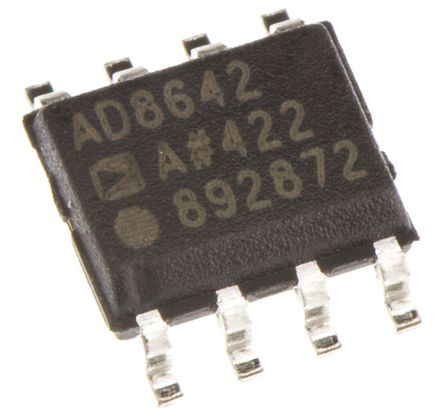

ANALOG DEVICES AD8642ARZ Operational Amplifier, Dual, 2 Amplifier, 3.5MHz, 3V/µs, 5V to 26V, SOIC, 8Pins
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8642ARZ is a low power precision dual JFET input Operational Amplifier with rail-to-rail output. The ability to swing nearly rail-to-rail at the input and rail-to-rail at the output enables designers to buffer complementary metal-oxide semiconductor digital-to-analog converters (CMOS DACs), ASICs and other wide output swing devices in single-supply systems. The outputs remain stable with capacitive loads of more than 500pF. The AD8642 is suitable for applications utilizing multichannel boards that require low power to manage heat. Other applications include photodiodes, ATE reference level drivers and battery management.
Extremely low input bias current
Unity-gain stable
No phase reversal
250µA Maximum low supply current
1pA Maximum very low input bias current
750µV Maximum low offset voltage

Show

AD8642ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	26.0 V
Output Current	6mA @5V
Supply Current	200 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	74 dB
Bandwidth	3.5 MHz
Slew Rate	3.00 V/μs
Gain Bandwidth Product	3 MHz
Input Impedance	25.0 GΩ
Input Offset Voltage	70 µV
Input Bias Current	0.25 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3.5 MHz
Minimum CMRR Range	74 dB
Supply Voltage	5V ~ 26V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
