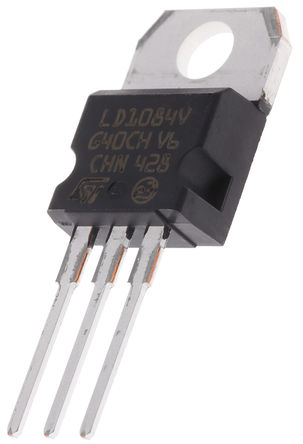

Image is for your reference only,please check specifications for details
- LD1084V - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC1609830
-
Category:Voltage Regulator
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:LDO Voltage Regulator, Adjustable, 30V in, 1.3V drop, 5A out, TO-220-3
-
Stock Locations:
-
Availability:1,100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.61
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LD1084V is a low-drop Positive Voltage Regulator providing up to 5A of output current. Dropout is guaranteed at a maximum of 1.5V at the maximum output current, decreasing at lower loads. The regular is pin-to-pin compatible with the older 3-terminal adjustable regulator, but it has better performances in terms of drop and output tolerance. Unlike PNP regulator, where a part of the output current is wasted as quiescent current, the regulator quiescent current flows into the load, so to increase the efficiency. A minimum capacitor of 10µF is needed for stability.
- Internal power and thermal limit
- Pinout compatibility with standard adjustable VREG
LD1084V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Supply Voltage (DC) | 30.0V (max) |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 30.0V (max) |
| Output Voltage | 28.0 V |
| Output Current | 5 A |
| Supply Current | 10 mA |
| Number of Positions | 3 Position |
| Quiescent Current | 5 mA |
| voltage rating | 1.3 V |
| Input Voltage (Max) | 30 V |
| Input Voltage (Min) | 4.25 V |
| Output Voltage (Max) | 28.5 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Number of Output Channels | 1 Channel |
| Input Voltage | 30 V |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 9.15 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
