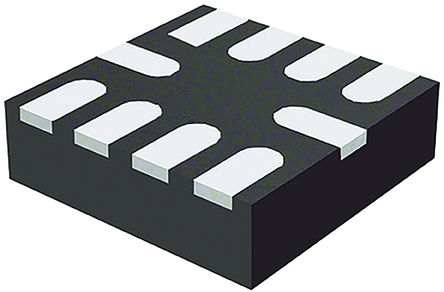

TS3USB221ARSER - TI
Manufacturer:
TI
ManyChip's Part#:
MC1000825
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
UQFN-10
Datasheet:
Datasheet 3D Model
Description:
1:2 Analog Multiplexer/Demultiplexer IC, Dual, 6Ω, 2.3V to 3.6V, QFN-10
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3USB221ARSER is a 1:2 Mux/Demux Switch with single Enable and ESD protection specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (900MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from an USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. The device also has a low power mode that will reduce the power consumption to 1µA for portable applications with a battery or limited power budget. The device is designed for low bit-to-bit skew and high channel-to-channel noise isolation and is compatible with various standards, such as high-speed USB 2.0 (480Mbps).
VI/O accepts signals up to 5.5V
1.8V Compatible control-pin inputs
Low power mode when OE is disabled (1µA)
0.2R Typical ΔRON
6pF Typical Cio (on)
Low power consumption (30µA maximum)
High bandwidth (900MHz typical)
Latch-up performance exceeds 100mA per JESD 78, class II
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS3USB221ARSER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Supply Voltage (DC)	2.30V ~ 3.60V
Number of Outputs	4 Output
Supply Current	30 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Bandwidth	1 GHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.1 GHz
Supply Voltage	2.3V ~ 3.6V
	Show
Size-Length	2.05 mm
Size-Width	1.55 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
