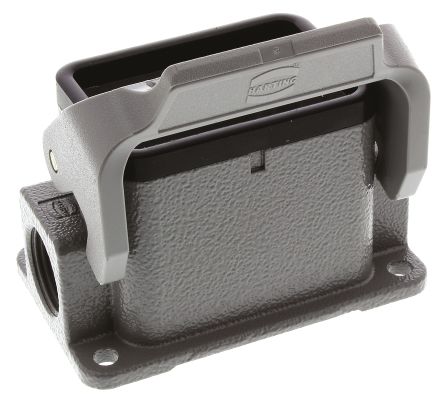

Image is for your reference only,please check specifications for details

19300061250 - Harting Technology Group
Manufacturer:
Harting Technology Group
ManyChip's Part#:
MC35508838
Category:
Connector, Connector Accessory
Datasheet:
Datasheet 3D Model
Description:
Heavy Duty Connector Base, Single Side Entry M20, Han B Series, Surface Mount, 6B
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 19300061250 is a side entry Surface Mounted Housing for 6B series connectors, M20 size cable entry. Single locking lever and low construction. Aluminium die cast housing with powder coated surface, RAL 7037 (grey) locking element, polycarbonate + stainless steel locking lever, NBR seal.
UL94V-0 Flammability rating
IP65 Protection rating
NEMA type-4, 4X, 12

Show

19300061250 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
	Show
Size-Length	82 mm
Housing Color	Gray
Color	Gray
Material	Zinc Alloy
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
