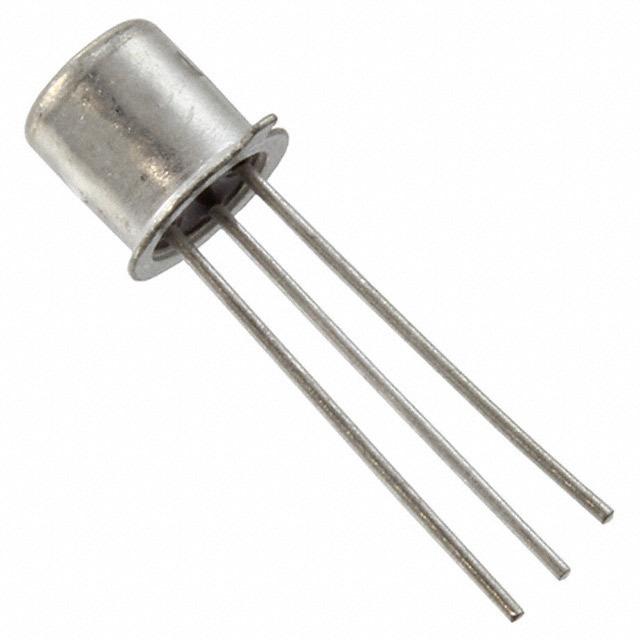

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

2N4393 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-18
Drain to Source Resistance (on) (Rds)	100 Ω
Polarity	N-Channel
Power Dissipation	1.8 W
Drain to Source Voltage (Vds)	40.0 V
Breakdown Voltage (Drain to Source)	40 V
Breakdown Voltage (Gate to Source)	40 V
Continuous Drain Current (Ids)	100 pA
Reverse Breakdown Voltage	40 V
Input Capacitance (Ciss)	14pF @20V(Vds)
Input Power (Max)	1.8 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1.8 W
	Show
Material	Silicon
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	ECL99
