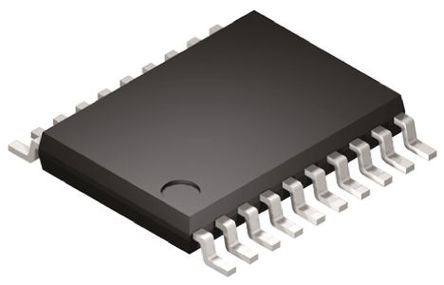

XCF02SVOG20C - Xilinx
Manufacturer:
Xilinx
ManyChip's Part#:
MC1904233
Category:
EEPROM IC Chip
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
FPGA Configuration Memory, Flash, 2Mbit, 50MHz, JTAG, Parallel, Serial, TSSOP, 20Pins
Stock Locations:
Availability:
310 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 85.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The XCF02SVOG20C is a platform flash in-system Programmable Configuration PROM. It is available in 1 to 32MB densities, this provide an easy-to-use, cost-effective and reprogrammable method for storing large Xilinx FPGA configuration bit-streams. When driven from a stable, external clock, the PROM can output data at rates up to 33MHz.
Low-power advanced CMOS NOR flash process
Endurance of 20000 program/erase cycles
JTAG command initiation of standard FPGA configuration
Cascadable for storing longer or multiple bit streams
Dedicated boundary-scan (JTAG) I/O power supply (VCCJ)
Serial FPGA configuration interface
iMPACT software always issues a XSC_UNLOCK when performing an Erase operation on an XCFxxP PROM and thus, always unlocks the write protection.

Show

XCF02SVOG20C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Number of Positions	20 Position
Clock Speed	50 MHz
Memory Size	250000 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	6.5 mm
Size-Width	4.39 mm
Size-Height	1.04 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
HK STC License	NLR
