V23079A2001B301 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC8527126
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:

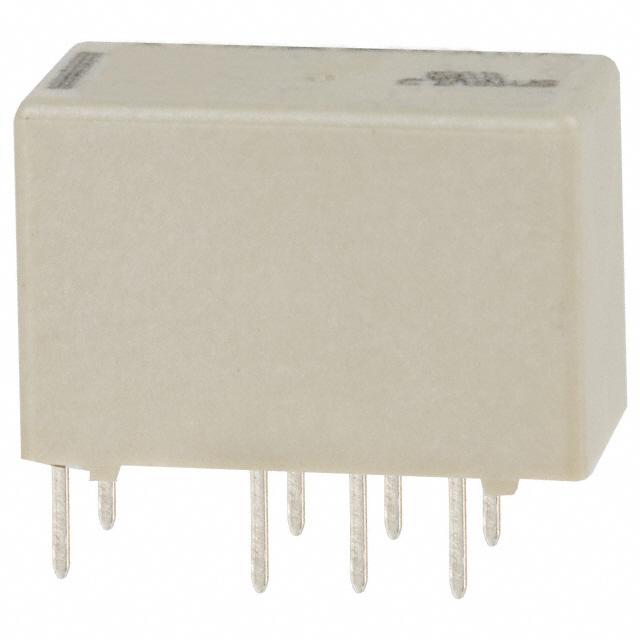

Signal Relay 5VDC 2A DPDT (( 14.6mm 7.2mm 9.5mm)) Through Hole Automotive Medical
Stock Locations:
Availability:
10,945 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**TE Connectivity RT1 and RT2 Series PCB Power Relays**
RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and coil voltages. RT1 PCB power relays are 12A, have 3.5mm pinning and are flux proof RT2 PCB power relays are 12A, have 5mm pinning and are flux proof RT3 PCB power relays are 16A, have 5mm pinning and are flux proor RTB PCB power relays are 12A, have 3.5mm pinning and are wash tight RTD PCB power relays are 16A, have 5mm pinning and are wash tight RT4 PCB power relays are 8A, have 5mm pinning and are flux proof RTE PCB power relays are 8A, have 5mm pinning and are wash tight

Show

V23079A2001B301 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Contact Plating	Gold
Voltage Rating (DC)	220 V
Voltage Rating (AC)	250 V
Current Rating	2 A
Insulation Resistance	>1000 MΩ
Input Voltage (DC)	5.00 V
Contacts Type	DPDT
Power Consumption	140 mW
Contact Current Rating	2 A
Coil Voltage	5 VDC
Coil Current	28.09 mA
Coil Power (DC)	140 mW
Coil Resistance	178 Ω
Carry Current	5.00 A
Current Rating (Max)	2 A
Coil Voltage (DC)	5 V
Coil Power	140 mW
Input Power (Max)	60W, 62.5VA
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5 VDC
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	14.6 mm
Size-Width	7.2 mm
Size-Height	9.5 mm
Contact Material	Silver Nickel, Gold
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536410050
ECCN Code	EAR99
