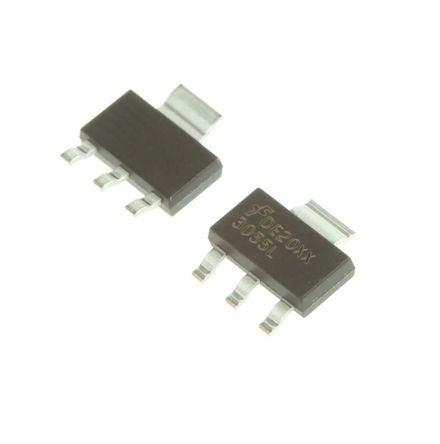

Image is for your reference only,please check specifications for details

NDT3055L - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7697959
Category:
MOSFET, MOSFET Transistor
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
Trans MOSFET N-CH 60V 4A 4Pin(3+Tab) SOT-223 Trans MOSFET N-CH 60V 4A 4Pin(3+Tab) SOT-223
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NDT3055L is a N-channel logic level enhancement mould MOSFET using high cell density, DMOS technology. This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as DC/DC converters, PWM motor controls and other battery powered circuits where fast switching, low in-line power loss and resistance to transients are needed.
High density cell design for extremely low RDS (ON)
High power and current handling capability
Low drive requirements allowing operation directly from logic drivers

Show

NDT3055L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	60.0 V
Current Rating	3.50 A
Number of Channels	1 Channel
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	0.07 Ω
Polarity	N-Channel
Power Dissipation	3 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	4.00 A
Rise Time	7.5 ns
Input Capacitance (Ciss)	345pF @25V(Vds)
Input Power (Max)	1.1 W
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	3000 mW
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
