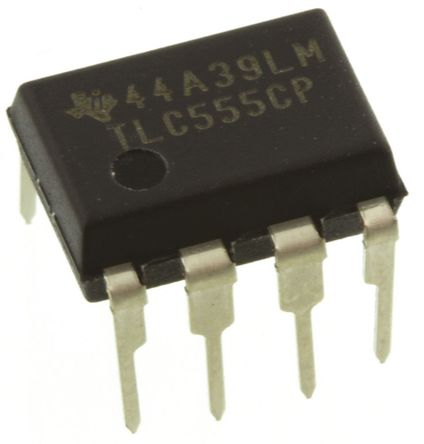

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC555CP is a monolithic timing circuit fabricated using the TI LinCMOS™ process. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2MHz. Because of its high input impedance, this device uses smaller timing capacitors than those used by the NE555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power supply voltage.
Very low power cConsumption
Capable of operation in a stable mode
CMOS output capable of swinging rail to rail
High output current capability
Output fully compatible with CMOS, TTL, and MOS
Low supply current reduces spikes during output transitions
Single supply operation from 2 V to 15 V
ESD protection exceeds 2000V per MIL-STD-883C, Method 3015.2

Show

TLC555CP Specifications
