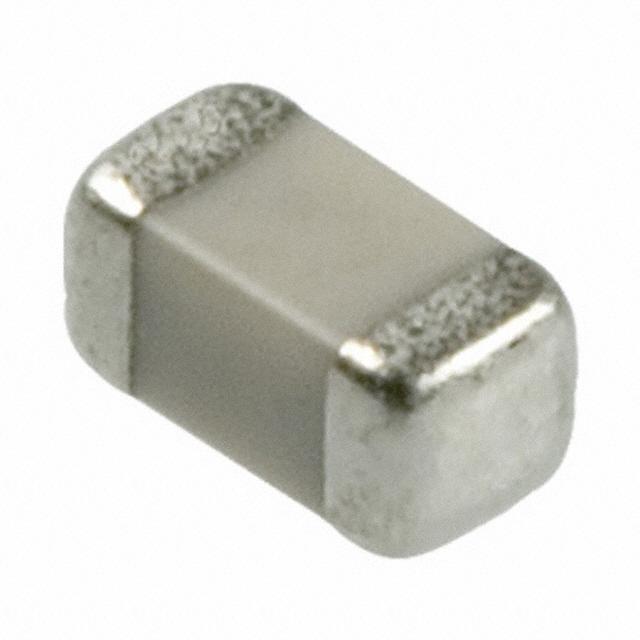

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVX multilayer ceramic capacitors with EIA class II, X5R dielectric material are high capacitance ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric. These capacitors are well suited for decoupling and filtering applications.
Capacitance value ranges from 100pF to 100µF
EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812 case sizes available
Rated DC voltage of 4V, 6.3V, 10V, 16V, 25V, 35V, 50V, 100V
±10% and ±20% tolerance
Nickel (Ni) and tin (Sn) plated terminations
Load life of 1000h at 85˚C
Operating temperature range -55˚C to 85˚C

Show

0603ZD106MAT2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	10.0 V
Operating Voltage	10 V
Insulation Resistance	10 GΩ
Capacitance	10 µF
Capacitance Tolerance	±20 %
Dielectric Characteristic	X5R
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	10 V
	Show
Size-Length	1.6 mm
Size-Width	0.81 mm
Size-Height	0.94 mm
Material	X5R/-55℃~+85℃
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
