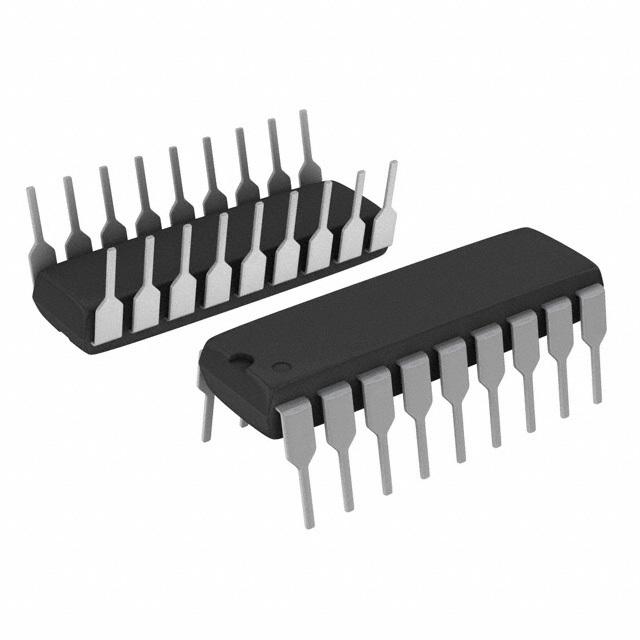

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power Switch/Driver 1:10 Bipolar 40mA 18-DIP
A6810SA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 18 Pin |
| Case/Package | DIP-18 |
| Supply Voltage (DC) | 5.00 V |
| Number of Outputs | 10 Output |
| Output Voltage | 58.3 V |
| Output Current | 15 mA |
| Output Current (Max) | 40 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Show | |
| Size-Height | 3.3 mm |
| Operating Temperature | -20℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
