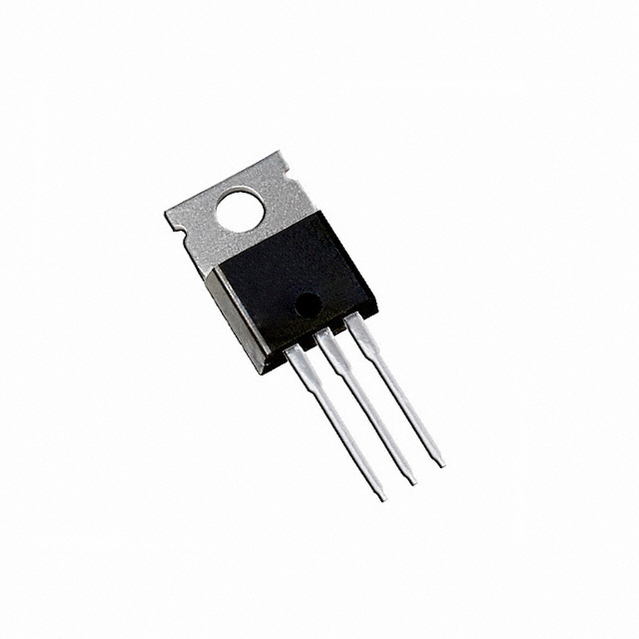

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRL540 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220
Polarity	N-CH
Power Dissipation	150 W
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	28A
	Show
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
