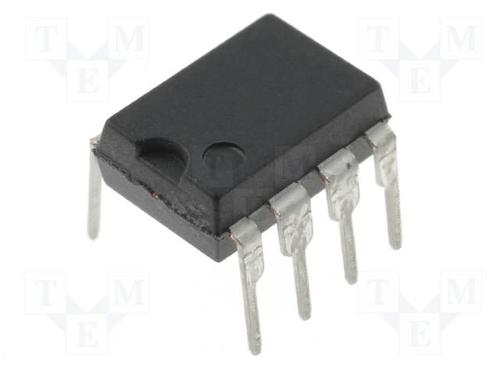

Image is for your reference only,please check specifications for details

LF412CN - TI
Manufacturer:
TI
ManyChip's Part#:
MC20832707
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LF412CN Operational Amplifier, Dual, 2 Amplifier, 4MHz, 15V/µs, 10V to 36V, DIP, 8Pins
Stock Locations:
Availability:
327 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
This device is a low-cost, high-speed, JFET-input operational amplifier with very low input offset voltage and a specified maximum input offset voltage drift. It requires low supply current yet maintains a large gain bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents.
The LF412C can be used in applications such as high-speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits.
The LF412C is characterized for operation from 0°C to 70°C.
Low Input Bias Current....................................50 pA Typ
Low Input Noise Current
0.01 pA/√HzTyp
Low Supply Current....................................4.5 mA Typ
High Input impedance....................................1012ΩTyp
Internally Trimmed Offset Voltage
Wide Gain Bandwidth....................................3 MHz Typ
High Slew Rate.................................... 13 V/µs Typ

Show

LF412CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	15.0 V
Operating Voltage	10V ~ 36V
Output Current	25.0 mA
Supply Current	3.6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	670 mW
Common Mode Rejection Ratio	70 dB
Input Offset Drift	7.00 µV/K
Bandwidth	3 MHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	4 MHz
Input Offset Voltage	1 mV
Input Bias Current	50 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	4 MHz
Supply Voltage	10V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	10 V
	Show
Size-Length	9.27 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
