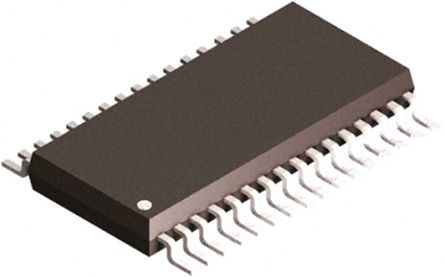

- DRV8711DCP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10835729
-
Category:Motor Driver
-
Package:HTSSOP-38
-
Datasheet:Datasheet 3D Model
-
Description:Motor Driver/Controller, Stepper, 8V to 52V supply, 52V/1 Output, HTSSOP-38
-
Stock Locations:
-
Availability:321 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 95.61
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DRV8711DCP is a stepper motor Gate Driver with on-chip 1/256 micro-stepping indexer and stall detect that uses external N-channel MOSFETs to drive a bipolar stepper motor or two brushed DC motors. A microstepping indexer is integrated, which is capable of step modes from full step to 1/256-step. An ultra-smooth motion profile can be achieved using adaptive blanking time and various current decay modes, including an auto-mixed decay mode. Motor stall is reported with an optional back-EMF output. A simple step/direction or PWM interface allows easy interfacing to controller circuits. A SPI serial interface is used to program the device operation. Output current, step mode, decay mode and stall detection functions are all programmable through a SPI serial interface. Internal shutdown functions are provided for over-current protection, short-circuit protection, under-voltage lockout and over-temperature.
- Pulse width modulation (PWM) microstepping motor driver
- Built-in 1/256-step Microstepping indexer
- Drives external n-channel MOSFETs
- Optional STEP/DIR pins
- Optional PWM control interface for DC motors
- Flexible decay modes, including automatic mixed decay mode
- Stall detection with optional BEMF output
- Highly configurable SPI serial interface
- Internal reference and torque DAC
- Scalable output current
- Over-current Protection (OCP)
- Over-temperature Shutdown (OTS) protection
- Under-voltage lockout (UVLO) protection
- Individual fault condition indication bits
- Fault condition indication pin
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
DRV8711DCP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 38 Pin |
| Case/Package | HTSSOP-38 |
| Supply Voltage (DC) | 8.00V (min) |
| Number of Outputs | 1 Output |
| Output Voltage | 52 V |
| Output Current | 200 mA |
| Number of Positions | 38 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 52V |
| Supply Voltage (Max) | 52 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Size-Length | 9.8 mm |
| Size-Width | 4.50 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2018/06/27 |
| ECCN Code | EAR99 |
