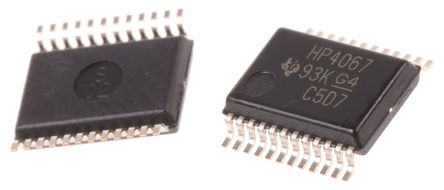

CD74HC4067SM96 - TI
Manufacturer:
TI
ManyChip's Part#:
MC69940
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SSOP-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CD74HC4067SM96 Analog Multiplexer, 16:1, 16Circuits, 160Ω, 2V to 6V, SSOP-24
Stock Locations:
Availability:
1,616 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CD74HC4067SM96 is a Multiplexer/Demultiplexer IC, digitally controlled analogue switches that utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL, with the low power consumption of standard CMOS integrated circuits. This analogue multiplexer/demultiplexer control analogue voltages that may vary across the voltage supply range. They are bidirectional switches thus allowing any analogue input to be used as an output and vice-versa. The switches have low "on" resistance and low "off" leakages. In addition, these devices have an enable control which when high will disable all switches to their "off" state.
Wide Analogue Input Voltage Range
Low "ON" Resistance
Fast Switching and Propagation Speeds
6ns@4.5V Break-Before-Make switching 10 LSTTL loads standard & 15 LSTTL loads Bus Driver o/p Fan-out
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL Logic ICs
Green Product, No Sb/Br
ESD sensitive device, take proper precaution while handling the device, stresses above those listed in Absolute Maximum Ratings may cause permanent damage to the device.

Show

CD74HC4067SM96 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SSOP-24
Supply Voltage (DC)	2.00V (min)
Number of Outputs	1 Output
Supply Current	8 µA
Number of Circuits	16 Circuit
Number of Channels	16 Channel
Number of Positions	24 Position
Number of Bits	16 Bit
Polarity	Non-Inverting
Bandwidth	89 Mhz
Number of Inputs	16 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	89 MHz
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	8.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
