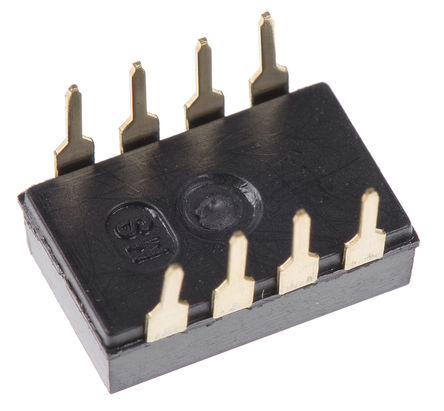

Image is for your reference only,please check specifications for details

ADE0404 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC26360200
Category:
DIP Switch, SIP Switch
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
ALCOSWITCH - TE CONNECTIVITY ADE0404 DIP / SIP Switch, Raised Slide, 4Circuits, SPST, Through Hole, AD Series, DIP Unsealed, 24VDC
Stock Locations:
Availability:
3,973 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADE0404 is a 4-position single-pole single-throw (SPST) vertical mount DIP Switch. The ADE series switch comes with black polyphenylene sulphide (PPS), gold-flash contact mating area plating and gold over nickel plated solder with copper alloy contact base.
Extended actuator
High pressure contact system
Processable without tape seal
Auto insertable
UL94V-0 Flammability rating
1000 Operations electrical endurance

Show

ADE0404 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Pin Pitch	2.54 mm
Contact Plating	Gold Flash
Voltage Rating (DC)	24 V
Insulation Resistance	1000 MΩ
Orientation	Vertical
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Positions	4 Position
Contact Resistance	50 mΩ
Contact Current Rating	100mA @24VDC
Current Rating (Max)	0.1A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	50 mΩ
	Show
Size-Length	12.14 mm
Size-Width	8.38 mm
Size-Height	5.8 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536509032
ECCN Code	EAR99
