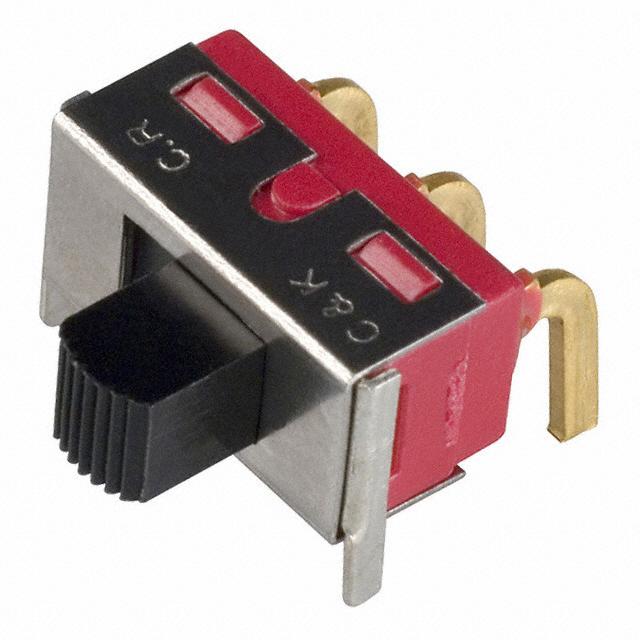

Image is for your reference only,please check specifications for details

1101M2S3ABE2 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC2642596
Category:
Slide Switch, Switch Slide
Datasheet:
Datasheet 3D Model
Description:
Switch Slide ON None ON SPDT Side Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole
Stock Locations:
Availability:
305 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.74

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1101M2S3ABE2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Current Rating	0.02 A
Insulation Resistance	1000 MΩ
Number of Rows	1 Row
Orientation	Right Angle
Contacts Type	SPDT
Contact Resistance	10 mΩ
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 VDC
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<10 mΩ
	Show
Size-Length	13.57 mm
Size-Height	6.6 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 65℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509050
ECCN Code	EAR99
