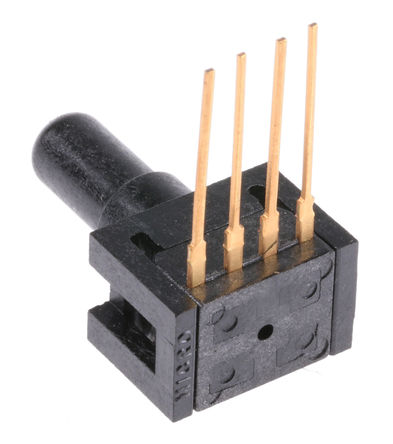

24PCBFA6G - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC10217178
Category:
Pressure Sensor
Package:
SIP-4
Datasheet:
Datasheet 3D Model
Description:
Pressure Sensor, Miniature, Silicon, 5psi, Gauge, Straight, Voltage, 10V, 2mA
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 34.54

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 24PC series Pressure Sensor that provide a small, high value, pressure sensing solution for use with printed circuit boards (PCBs). Based on the long established reliability and accuracy of the 24PC pressure sensor, the 24PC SMT offers reduced size with true SMT capability. The smaller size reduces the sensors footprint on the PCB, thereby reducing the size of the PCB. The 24PC SMT is designed to be used with other SMT components on a PCB, helping to lower installation costs and eliminate secondary operations. The sensor features Wheatstone bridge construction, silicon piezoresistive technology and ratiometric output for proven application flexibility, design simplicity and ease of manufacture. Although designed for the medical industry, the 24PC SMT pressure sensor may be applied in almost any applications.
Alignment pins for position accuracy
Small package size (less than one half the size of the 26PC) and compact surface mount profile
3.18mm (0.125") Diameter pick-up feature for use in pick and place machines
Maximum peak reflow temperature of 260°C (500°F)
Gage, vacuum gage, differential gage, wet/wet differential sensing
True wet/wet differential sensing
Proven elastomeric interconnections of the 20PC family
Temperature compensation
End point calibration
Sensor consists of only five components
Elastomeric construction

Show

24PCBFA6G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	10.0 V
Voltage Rating (DC)	10.0 V
Output Voltage	0mV ~ 115mV
Supply Current	2 mA
Input Impedance	5 kΩ
Switching Current	2 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Voltage Rating	10 V
Supply Voltage	10 VDC
Supply Voltage (Max)	12 VDC
	Show
Size-Height	8 mm
Weight	2 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9026204000
ECCN Code	EAR99
