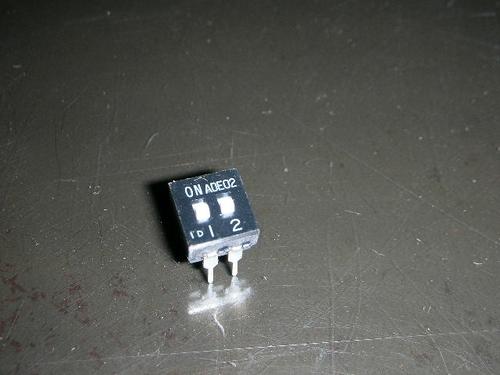

Image is for your reference only,please check specifications for details
- ADE02 - Alcoswitch
-
Manufacturer:Alcoswitch
-
ManyChip's Part#:MC194972129
-
Category:DIP Switch, SIP Switch
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Switch DIP OFF ON SPST 2 Extended Slide 0.1A 24VDC 0.4VA PC Pins 2.54mm Thru-Hole
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 100mA 24VDC
ADE02 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | SPST |
| Pin Pitch | 2.54 mm |
| Contact Plating | Gold Flash |
| Current Rating | 400 mA |
| Orientation | Vertical |
| Contacts Type | SPST |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 7.06 mm |
| Size-Width | 7.50 mm |
| Size-Height | 4.25 mm |
| Housing Color | Gray |
| Contact Material | Copper Alloy |
| Operating Temperature | -30℃ ~ 85℃ |
| Housing Material | Polyester |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ELV Compliant | Non-Compliant |
