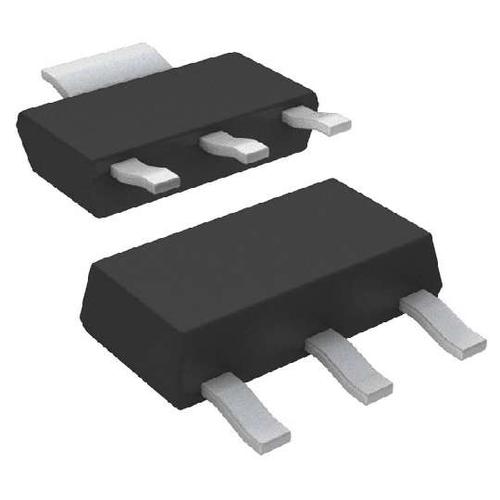

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ZXMP4A16G Series 40 V 0.06 Ohm P-Channel Enhancement Mode MOSFET - SOT-223
ZXMP4A16GTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Voltage Rating (DC) | -40.0 V |
| Current Rating | -6.40 A |
| Number of Positions | 4 Position |
| Drain to Source Resistance (on) (Rds) | 0.06 Ω |
| Polarity | P-Channel |
| Power Dissipation | 3.9 W |
| Threshold Voltage | 1 V |
| Drain to Source Voltage (Vds) | 40 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 6.40 A |
| Rise Time | 8.84 ns |
| Input Capacitance (Ciss) | 1007pF @20V(Vds) |
| Input Power (Max) | 2 W |
| Fall Time | 12.54 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 3900 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
