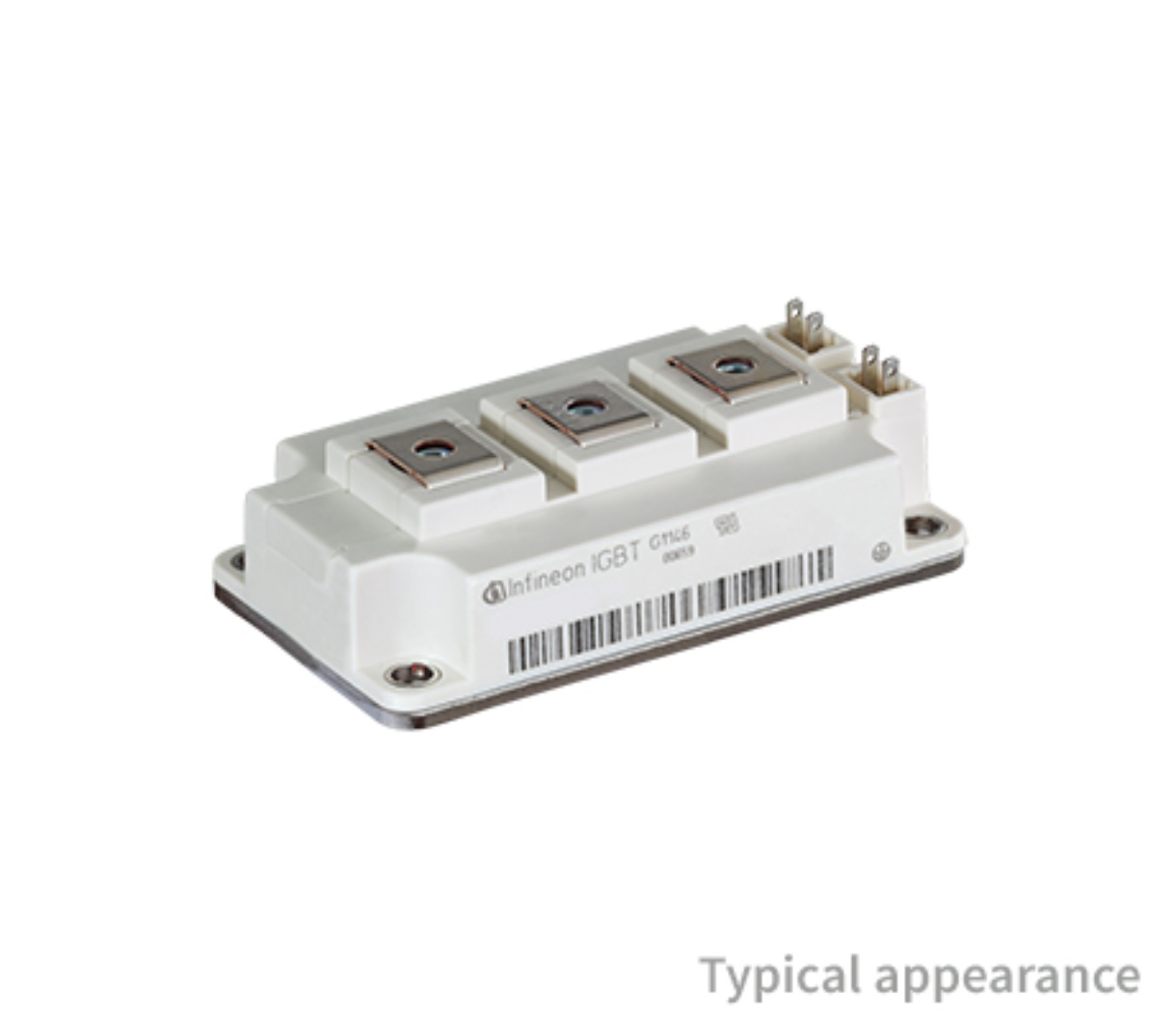

Image is for your reference only,please check specifications for details
- FF200R12KT4 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC6630655
-
Category:IGBT Transistor, IGBT Module
-
Package:AG-62MM-1
-
Datasheet:Datasheet 3D Model
-
Description:INFINEON FF200R12KT4 IGBT Array & Module Transistor, Dual NPN, 320A, 1.75V, 1.1kW, 1.2kV, Module
-
Stock Locations:
-
Availability:269 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 18.23
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Superior solution for frequency controlled inverter drives
- UL/CSA Certification with UL1557 E83336
- Operating temperature up to 150 °C
- Optimized switching characteristic like softness and reduced switching losses
- Existing packages with higher current capability
- RoHS compliant
- Benefits:
- Flexibility
- Optimal electrical performance
- Highest reliability
FF200R12KT4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 7 Pin |
| Case/Package | AG-62MM-1 |
| Number of Positions | 7 Position |
| Polarity | NPN |
| Power Dissipation | 1.1 kW |
| Breakdown Voltage (Collector to Emitter) | 1200 V |
| Input Capacitance (Cies) | 14nF @25V |
| Input Power (Max) | 1100 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1.1 kW |
| Show | |
| Size-Length | 106.4 mm |
| Size-Width | 61.4 mm |
| Size-Height | 30.9 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
