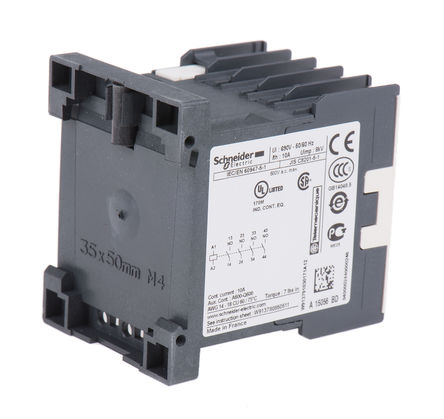

Image is for your reference only,please check specifications for details

CA3KN40BD - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC68252796
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
Relay; Cntrl Circuit; 4 NO Cntcts; 24VDC Cntrl; 690V Oper.; 10A; Screw Clamps; Rail Mnt
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CA3KN40BD from Schneider Electric is a four pole TeSys K IEC control relay with normally open (NO) contacts.
Screw clamp connection
Coil voltage of 24VDC
Approved by IEC 60947, NF C 63-140, VDE 0660, BS 5424 UL, CE and CSA standards
Ambient operating air temperature range from -25°C to 50°C
Rated operational voltage of 690V
Rated operational current of 10A

Show

CA3KN40BD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Operating Voltage	600 VAC
Contacts Type	4PST
Number of Bits	4 Bit
Contact Current Rating	10 A
Coil Voltage	24.0 V
Coil Power (DC)	1.50 W
Coil Power (AC)	4.50 W
Coil Voltage (DC)	24 V
	Show
Size-Length	2.28 in
Size-Width	1.77 in
Product Lifecycle Status	Active
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
