Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

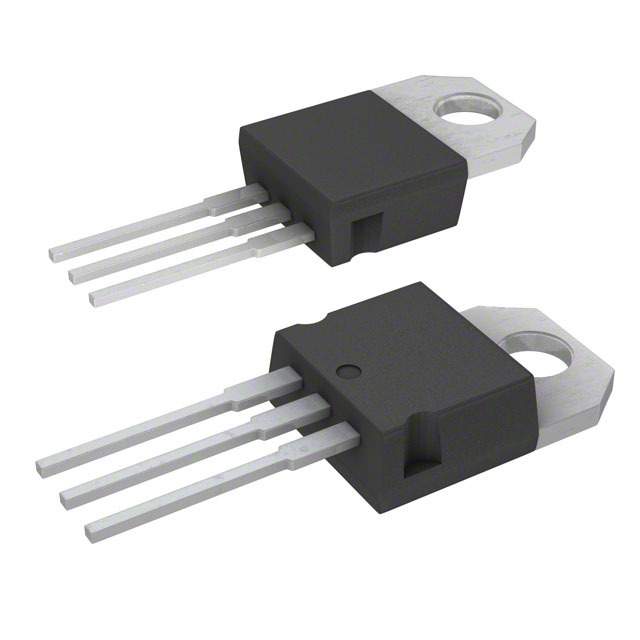

Case/Package | TO-220-3 |
Voltage Rating (DC) | 400 V |
Current Rating | 5.50 A |
Number of Channels | 1 Channel |
Drain to Source Resistance (on) (Rds) | 750 mΩ |
Polarity | N-Channel |
Power Dissipation | 100 W |
Drain to Source Voltage (Vds) | 400 V |
Breakdown Voltage (Drain to Source) | 400 V |
Breakdown Voltage (Gate to Source) | ±30.0 V |
Continuous Drain Current (Ids) | 5.50 A |
Rise Time | 11 ns |
Input Capacitance (Ciss) | 530pF @25V(Vds) |
Fall Time | 9 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 65 ℃ |
Power Dissipation (Max) | 100W (Tc) |
Show | |
Size-Length | 10.4 mm |
Size-Width | 4.6 mm |
Size-Height | 9.15 mm |
Operating Temperature | 150℃ (TJ) |
Product Lifecycle Status | Unknown |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
