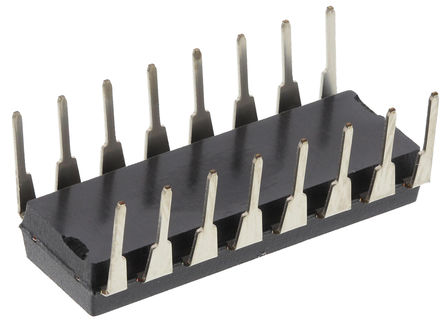

Image is for your reference only,please check specifications for details

Updated at 17/04/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4052BP is a dual 4-channel Analogue Multiplexer or Demultiplexer with common channel select logic. It has four independent inputs/outputs (nY0 to nY3) and a common input/output (nZ). The common channel select logic includes two select inputs (S1 and S2) and an active low enable input (E). Both multiplexers/demultiplexers contain four bi-directional analogue switches, each with one side connected to an independent input/output (nY0 to nY3) and the other side connected to a common input/output (nZ). With E low, one of the four switches is selected (low-impedance ON-state) by S1 and S2. With E high, all switches are in the high-impedance OFF-state, independent of S1 and S2. If break before make is needed, then it is necessary to use the enable input.
Fully static operation
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B

Show

HEF4052BP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Supply Voltage (DC)	3.00V (min)
Number of Outputs	8 Output
Supply Current	600 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Gates	2 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	750 mW
Supply Voltage	4.5V ~ 15.5V
	Show
Size-Length	19.5 mm
Size-Width	6.48 mm
Size-Height	3.2 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
