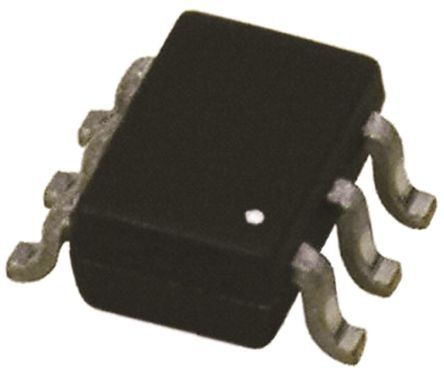

Image is for your reference only,please check specifications for details

Updated at 16/04/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74LVC1T45GW is a dual supply Translating Transceiver with 3-state outputs that enable bidirectional level translation. It features two 1-bit input-output ports, a direction control input (DIR) and dual supply pins. Both VCC(A) and VCC(B) can be supplied at any voltage between 1.2 and 5.5V making the device suitable for translating between any of the low voltage nodes. Pins A and DIR are referenced to VCC(A) and pin B is referenced to VCC(B). A HIGH on DIR allows transmission from A to B and a LOW on DIR allows transmission from B to A. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either VCC(A) or VCC(B) are at GND level, both A port and B port are in the high-impedance OFF-state. Active bus hold circuitry in the 74LVCH1T45 holds unused or floating data inputs at a valid logic level.
High noise immunity
IOFF circuitry provides partial Power-down mode operation
Complies with JEDEC standards
Suspend mode
16µA Maximum ICC low power consumption
Inputs accept voltages up to 5.5V
Latch-up performance exceeds 100mA per JESD 78 class II
±24mA Output drive

Show

74LVC1T45GW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-363
Supply Voltage (DC)	1.20V (min)
Number of Positions	6 Position
Data Rate	420 Mbps
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.2 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
