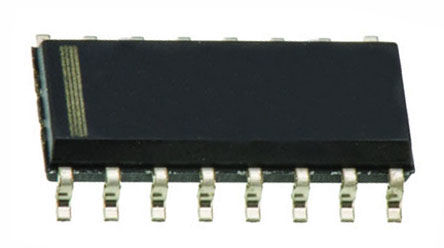

Image is for your reference only,please check specifications for details

SN74HC4020DR - TI
Manufacturer:
TI
ManyChip's Part#:
MC25961133
Category:
Logic Controller, Logic IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
Logic IC - Counter Texas Instruments SN74HC4020DR Binary counter 74HC Negative slope 33MHz SOIC 16 N
Stock Locations:
Availability:
981 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description/ordering information
The ’HC4020 devices are 14-stage binary ripple-carry counters that advance on the negative-going edge of the clock pulse. The counters are reset to zero (all outputs low) independently of the clock (CLK) input when the clear (CLR) input goes high.
● Wide Operating Voltage Range of 2 V to 6 V
● Outputs Can Drive Up To 10 LSTTL Loads
● Low Power Consumption, 80-µA Max ICC
● Typical tpd = 12 ns
● ±4-mA Output Drive at 5 V
● Low Input Current of 1 µA Max

Show
